Wi-Fi 6 Access Point
The WENLEN Wi-Fi 6 Access Point series brings 802.11ax tri-band wireless performance to enterprise office, hospitality, education, and industrial environments. With OFDMA and MU-MIMO technologies, each unit supports up to 512 concurrent client associations without perceptible throughput degradation.
Each unit delivers a combined aggregate throughput of 5.4 Gbps across the 2.4 GHz (574 Mbps), 5 GHz (2,402 Mbps), and 6 GHz (2,402 Mbps) bands. Target Wake Time (TWT) significantly reduces battery consumption for IoT endpoints while keeping them always-connected.
Centralised cloud management via the WENLEN Controller Console provides real-time RF visualisation, automatic channel selection, and firmware push across entire AP fleets. An 802.3bt PoE++ uplink port eliminates the need for a separate power supply.

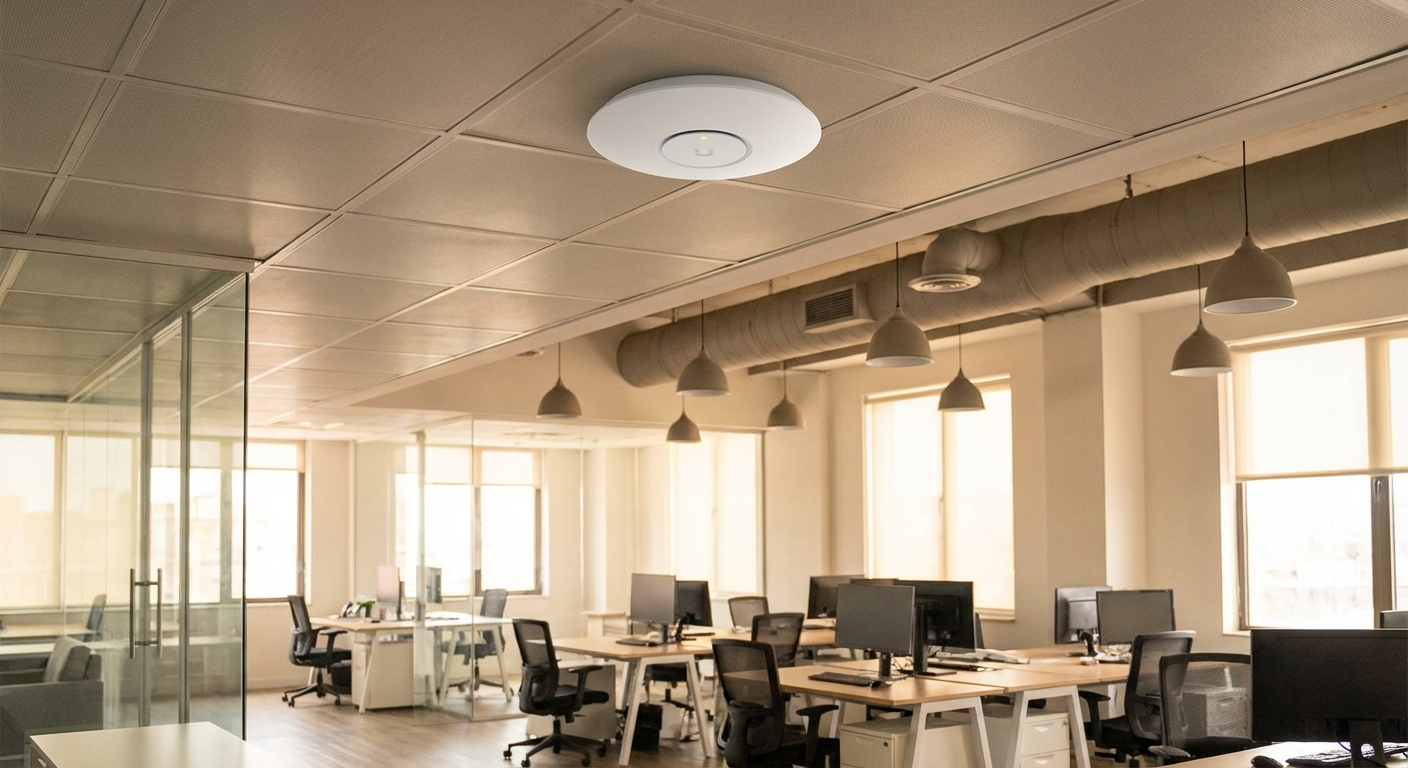

The compact disc form factor blends into any ceiling tile grid. All units are CE/FCC certified and carry a three-year limited warranty. Bulk orders include cloud licences and optional on-site commissioning support.
| Standard | IEEE 802.11ax (Wi-Fi 6) — 2.4 GHz / 5 GHz / 6 GHz tri-band |
| Max Throughput | 5,378 Mbps aggregate (574 + 2,402 + 2,402 Mbps) |
| Concurrent Clients | Up to 512 associations per AP |
| PoE Input | IEEE 802.3bt PoE++ (90W), or 802.3at PoE+ (degraded band) |
| Coverage | Up to 550 m² open-plan (recommended 200–300 m² with obstacles) |
| Management | Cloud controller, local web UI, SNMP v3, REST API, ZTP |
